Pontoons

HDPE Pontoon.skp194.9KB

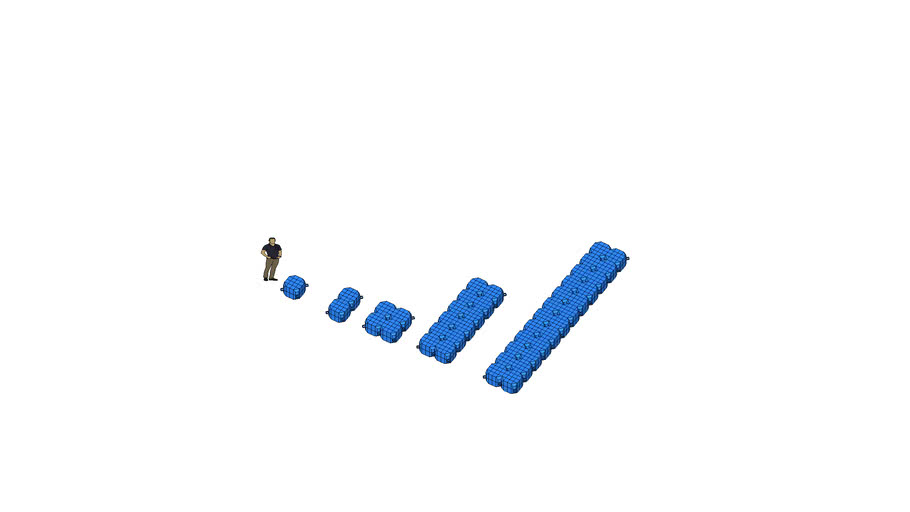

HDPE Pontoons

3dwarehouse.sketchup.com

HDPE Pontoons

Truss

Truss Collection, 12 6 3 2 1m.skp467.6KB

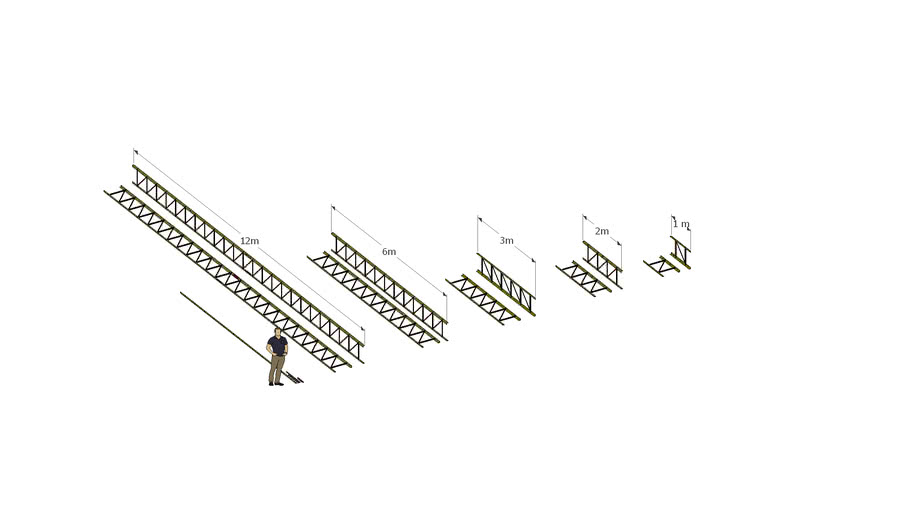

Lightweight Truss Collection, 12m, 6m, 3m, 2m, 1m. All 0.546m high, 0.05m width

This aimed at Alumium profiles. Large profile, L Bar: 50 x 50mm, 3mm thick Medium profile, L Bar: 25 x 25, 3mm thick Flat cord, 25 x 3mm thick

3dwarehouse.sketchup.com

Lightweight Truss Collection, 12m, 6m, 3m, 2m, 1m. All 0.546m high, 0.05m width

Making the count


Ok, So that's the count for the pontoon raw materials

Google Sheets - create and edit spreadsheets online, for free.

Create a new spreadsheet and edit with others at the same time -- from your computer, phone or tablet. Get stuff done with or without an internet connection. Use Sheets to edit Excel files. Free from Google.

docs.google.com

Google Sheets - create and edit spreadsheets online, for free.

Summary for the 16 pontoons

  1. Aluminum L profile, 50x50mm, 3mm thick, 6000mm long: 52 pcs
  2. Aluminum L profile, 25x25mm, 3mm, 6000mm long: 26 pcs
  3. Aluminum flat profile, 25x3mm, 6000mm long: 30 pcs
  4. Aluminum flat profile, 50x3mm, 6000mm long: 17 pcs
  5. Plywood boards, water-resistant, 19mm thick, 1200x2400mm: 32 pcs
